Artefact in combining diluted species with FSI

Posted 18 oct. 2017, 08:18 UTC−4 4 Replies

Dirk Jonker
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

As part of my bachelor degree i have to take part in a module organized around the COMSOL interface.

For my problem i have selected the actuation of a flexible membrane. My problem is that at some point during the simulation i see a blow up of the concentration in the area where my mesh is deformed.

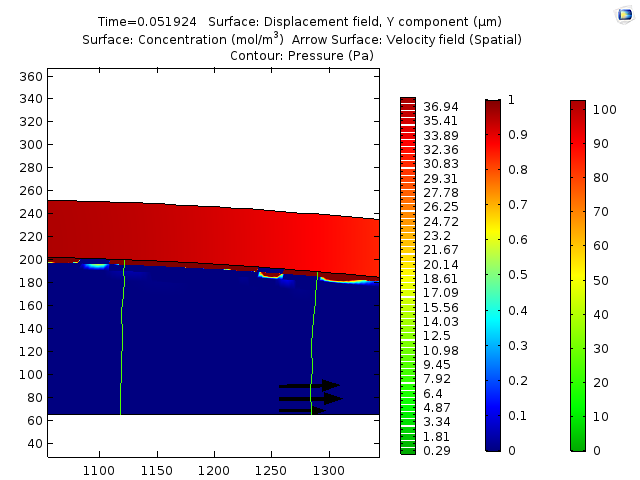

Please find attached an image of the situation. I have fixed the color bar of the concentration to get a better view of the problem. If not fixed values for 10^8 and beyond are found in single locations colouring everyhting else as ~0.

My hope is that somebody can give me directions into solving this problem.

Things i tried: - Changing initial concentration from 0 to 1. The result is a blow up at an earlier timestep. - Conservation of mass in the diluted species interface: no result. - Pressure point constraints: no result. - Concentration=0 point constraint at fluid-solid interface where membrane deforms: no result

Kind regards,

Dirk

Attachments:

4 Replies Last Post 24 oct. 2017, 08:54 UTC−4
Dirk Jonker
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 18 oct. 2017, 08:25 UTC−4

Oh yeah,

Feel free to ask for more information if necessary.

Oh yeah, Feel free to ask for more information if necessary.
Dirk Jonker
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 18 oct. 2017, 08:53 UTC−4

Okay,

Lowering the Reynolds number does seem to negate the problem. However, when i apply a negative pressure at the top of the membrane (creating more deflection) the problem is back.

Okay, Lowering the Reynolds number does seem to negate the problem. However, when i apply a negative pressure at the top of the membrane (creating more deflection) the problem is back.
Dirk Jonker
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 18 oct. 2017, 15:07 UTC−4

Okay,

So i found out that removing the FSI input from the TDS node> transport properties> velocity field removes the problem.

When i plot the velocity of the fluid at the edge of the membrane, i see the magnitude of the fluid velocity passing trough zero. When i plot the concentration with it, the blow up happens at approximately the same spot.

HELP?!?!

Okay, So i found out that removing the FSI input from the TDS node> transport properties> velocity field removes the problem. When i plot the velocity of the fluid at the edge of the membrane, i see the magnitude of the fluid velocity passing trough zero. When i plot the concentration with it, the blow up happens at approximately the same spot. HELP?!?!
Dirk Jonker
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 24 oct. 2017, 08:54 UTC−4

Load-ramping my entrance-flow solved the problem! Created a ramp for the average speed.

Load-ramping my entrance-flow solved the problem! Created a ramp for the average speed.
