heat exchanger, 2d axial symmetry, drawing problem

Posted 15 févr. 2011, 03:42 UTC−5 Version 3.5a 1 Reply

Dries Bos
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

We have a problem with the drawing of our heat exchanger, 2d axial symmetry.

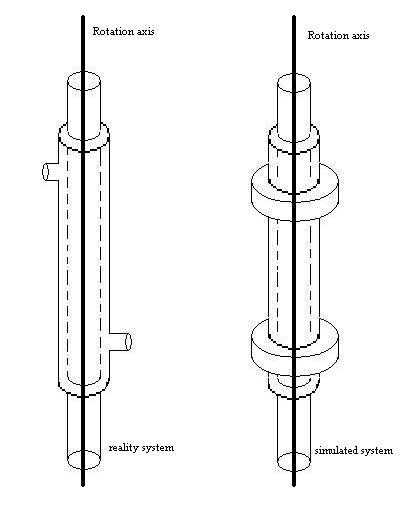

The problem is: We want to simulate the situation shown in the figure reality system, but we simulate the simulated system. This is because we draw a system 2d and axial symmetry. How is it possible to draw the reality system 2d axial symmetry while still retaining origional inlet.

The attached file shows our systems (reality and simulated system).

Thanks for your help.
1 Reply Last Post 15 févr. 2011, 05:05 UTC−5
Kai Herbrig
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 15 févr. 2011, 05:05 UTC−5
Hi,

If you want to simulate your real system, you have to accept that it is NOT 2D-Axi. Since it isn't 2D axi, 2D-axi doesn't work. You have to choose 3D.

regards
Hi, If you want to simulate your real system, you have to accept that it is NOT 2D-Axi. Since it isn't 2D axi, 2D-axi doesn't work. You have to choose 3D. regards
