Problem with meshing my geometry in the corner

Posted 10 avr. 2017, 23:42 UTC−4 Mesh Version 5.2a 3 Replies

Mohammad Amin Kazemi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi

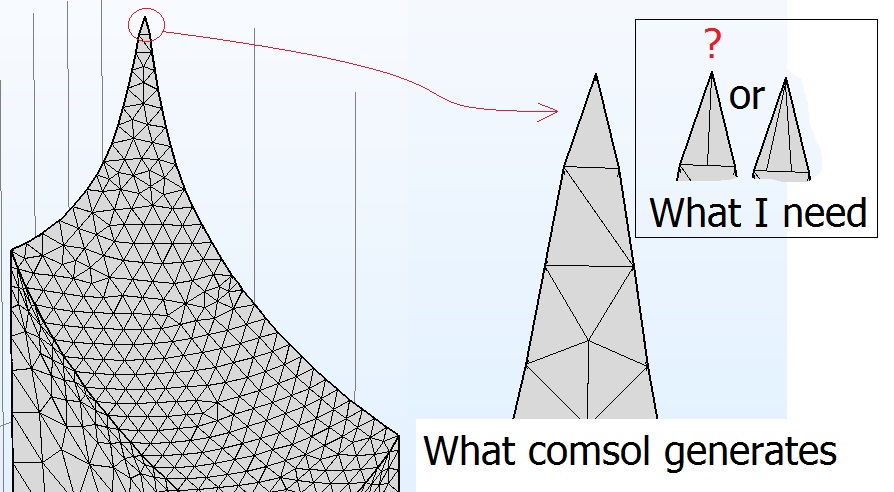

Can anyone help me get my desired mesh in the corner of the curved surface found in the attachment?
This is a 3D model and I used tetrahedral meshes. As I decrease the mesh size, I still get one element in the corner. I need to get two or more.
Is there any way to do this?
Amin,

Attachments:

3 Replies Last Post 11 avr. 2017, 10:52 UTC−4
Mark Harradine
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 11 avr. 2017, 02:08 UTC−4
You could perhaps use partitioning of the geometry to force the elements to be as you would like. Maybe use the point in the corner as one of three points to define the workplane to split your part.

Mark
You could perhaps use partitioning of the geometry to force the elements to be as you would like. Maybe use the point in the corner as one of three points to define the workplane to split your part. Mark
Sergei Yushanov Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 11 avr. 2017, 09:45 UTC−4
Amin,

Attached is mesh with controlled number of elements in the corner.

Regards,
Sergei
Amin, Attached is mesh with controlled number of elements in the corner. Regards, Sergei

Attachments:

Mohammad Amin Kazemi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 11 avr. 2017, 10:52 UTC−4
Thank you for your replies. It worked.
Amin,
Thank you for your replies. It worked. Amin,
