plot of time dependent heat transfer
Posted 26 nov. 2016, 03:20 UTC−5 Heat Transfer & Phase Change, Results & Visualization Version 5.2, Version 5.2a 2 Replies
Please login with a confirmed email address before reporting spam
Hi. After getting my result from stimulation:
sphere in a cylinder: there is a heat souce in the sphere.

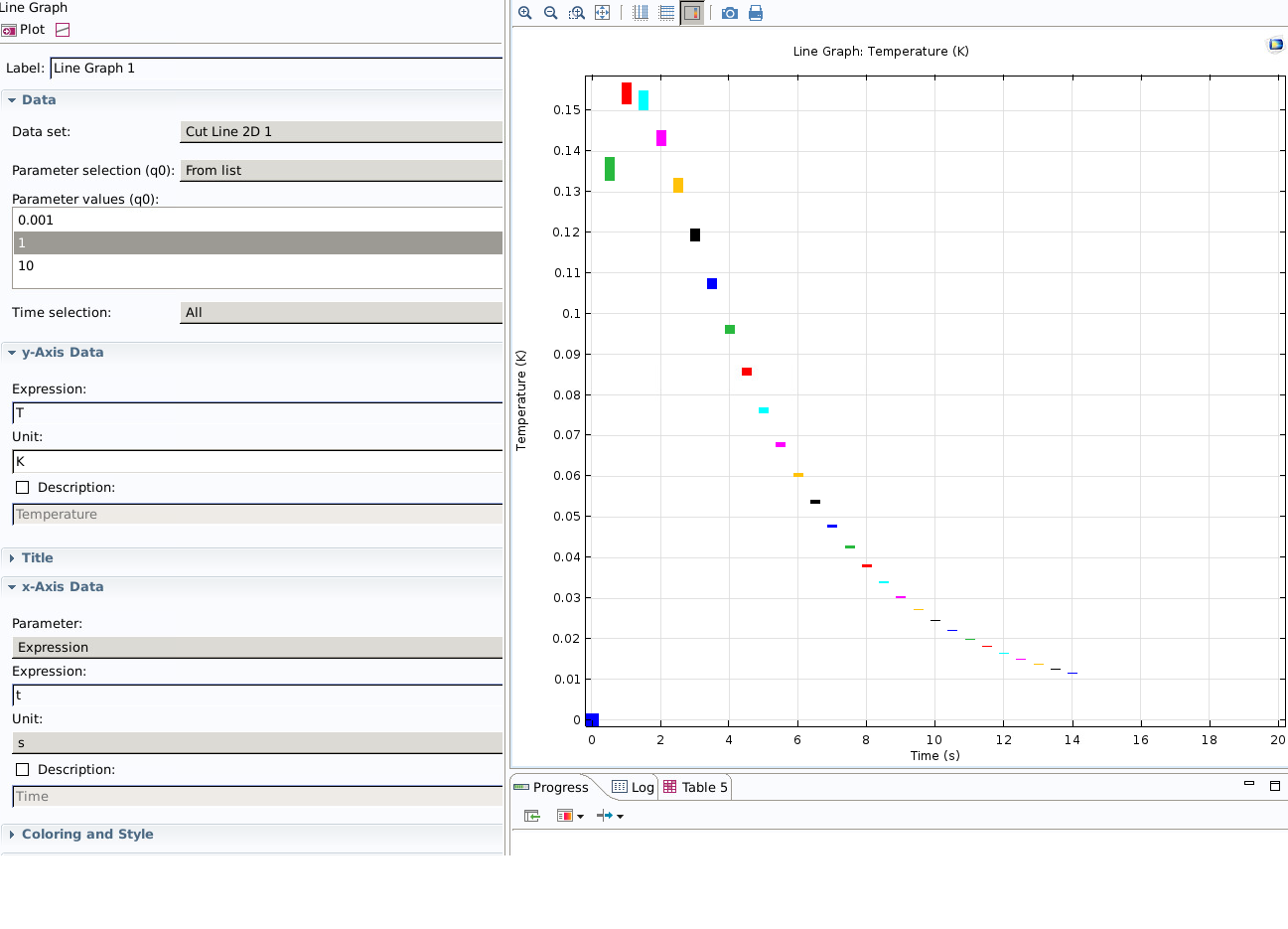

I want to make a plot of the tempeture change in the sphere vs time. When I make a 1D line plot I get a plot with points instead: see attached file. How do I get comsol to make a line plot instead. furthermore I am only interested in knowing the temperature change of the sphere (center of the sphere if possible). I have so far used a cut line, but is there any other tools that would be more suitable for this?
BR JianGui
sphere in a cylinder: there is a heat souce in the sphere.
I want to make a plot of the tempeture change in the sphere vs time. When I make a 1D line plot I get a plot with points instead: see attached file. How do I get comsol to make a line plot instead. furthermore I am only interested in knowing the temperature change of the sphere (center of the sphere if possible). I have so far used a cut line, but is there any other tools that would be more suitable for this?
BR JianGui
Attachments:
2 Replies Last Post 29 nov. 2016, 08:08 UTC−5
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
Hi JianGui
You can set the appearance of the plot in the “Coloring and Style” section. If that does not work, I need to see the model, to figure out what has happened.
/Thure
You can set the appearance of the plot in the “Coloring and Style” section. If that does not work, I need to see the model, to figure out what has happened.
/Thure
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
thanks, that helped
