how to create a twist blade in comsol, like in comsol static mixer particle tutorial.

Posted 12 oct. 2016, 13:40 UTC−4 1 Reply

Fahmi Ali
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

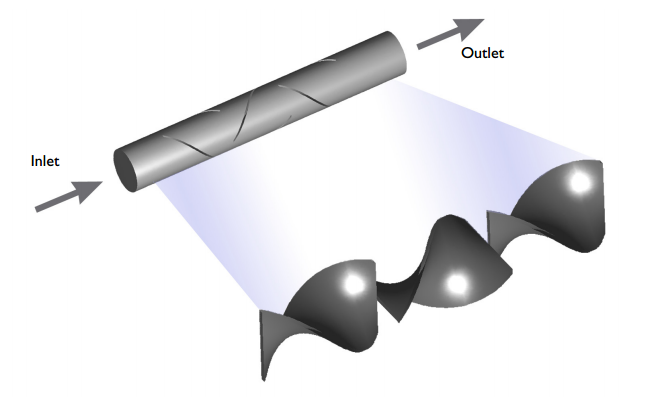

They haven't given the geometry details, how can i create this model with my own dimensions. I need to make the twist blade like in the figure, please help if anyone knows how to create it.

JazakAllah

Attachments:

1 Reply Last Post 12 oct. 2016, 15:57 UTC−4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 12 oct. 2016, 15:57 UTC−4
Hello Fahmi,
In the laminar static mixer model, the geometry of each blade is obtained by an extrusion with a 30 degree twist angle. See the mph file for the exact details.
More complex blade geometries can be created in other ways such as by lofting using the Design Module, see www.comsol.com/design-module and in particular this image cdn.comsol.com/products/design/impeller_collage_1024x835.png
Best,
Jeff
Hello Fahmi, In the laminar static mixer model, the geometry of each blade is obtained by an extrusion with a 30 degree twist angle. See the mph file for the exact details. More complex blade geometries can be created in other ways such as by lofting using the Design Module, see www.comsol.com/design-module and in particular this image https://cdn.comsol.com/products/design/impeller_collage_1024x835.png Best, Jeff
