Twist 3 D pipe

Posted 5 juil. 2016, 07:29 UTC−4 Geometry 1 Reply

Moayad Al Sheikh Hassan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

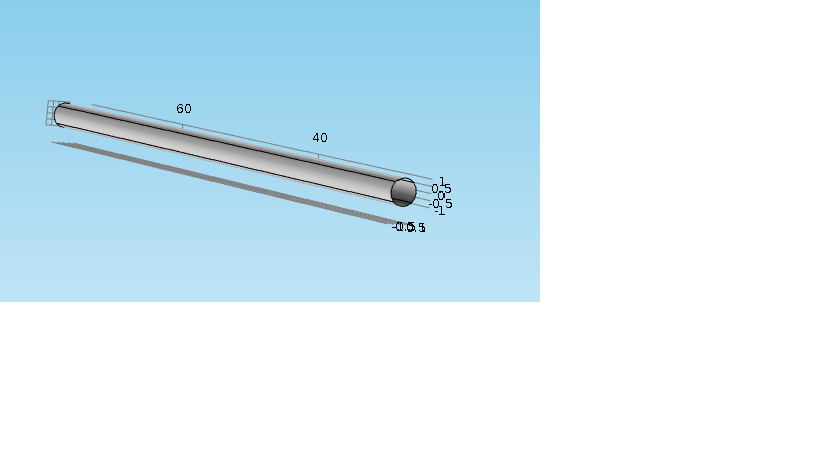

I draw 3 D pipe. After that i want (twist) this pipe with angel (90) but i dont' know the method.
My question: How can i twist this pipe?
Thanks,

Attachments:

1 Reply Last Post 12 juil. 2016, 16:37 UTC−4
Sohan Birla
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 12 juil. 2016, 16:37 UTC−4
You can draw cross section of pie (ellipse) in a workplane and use extrude feature and provide twist angle there.
You can draw cross section of pie (ellipse) in a workplane and use extrude feature and provide twist angle there.
