Is COMSOL able to accurately calculate this "custom" coil?
Posted 20 avr. 2016, 15:29 UTC−4 Low-Frequency Electromagnetics, Geometry Version 5.2 0 Replies
Please login with a confirmed email address before reporting spam
I have created a "dual flat helix" coil and assigned the geometry to a multiturn coil with 1 winding, hoping that COMSOL understands the number of turns by means of coil geometry analysis.
Before I spend the rest of the semester working on this model, I hope that someone can answer me if this will produce accurate results, or if COMSOL might misunderstand the geometry.
(right now i have deactivated the infinite domain)
Main task is to calculate inductance and magnetic flux.
Secondary is to calculate heating, losses and temperature.

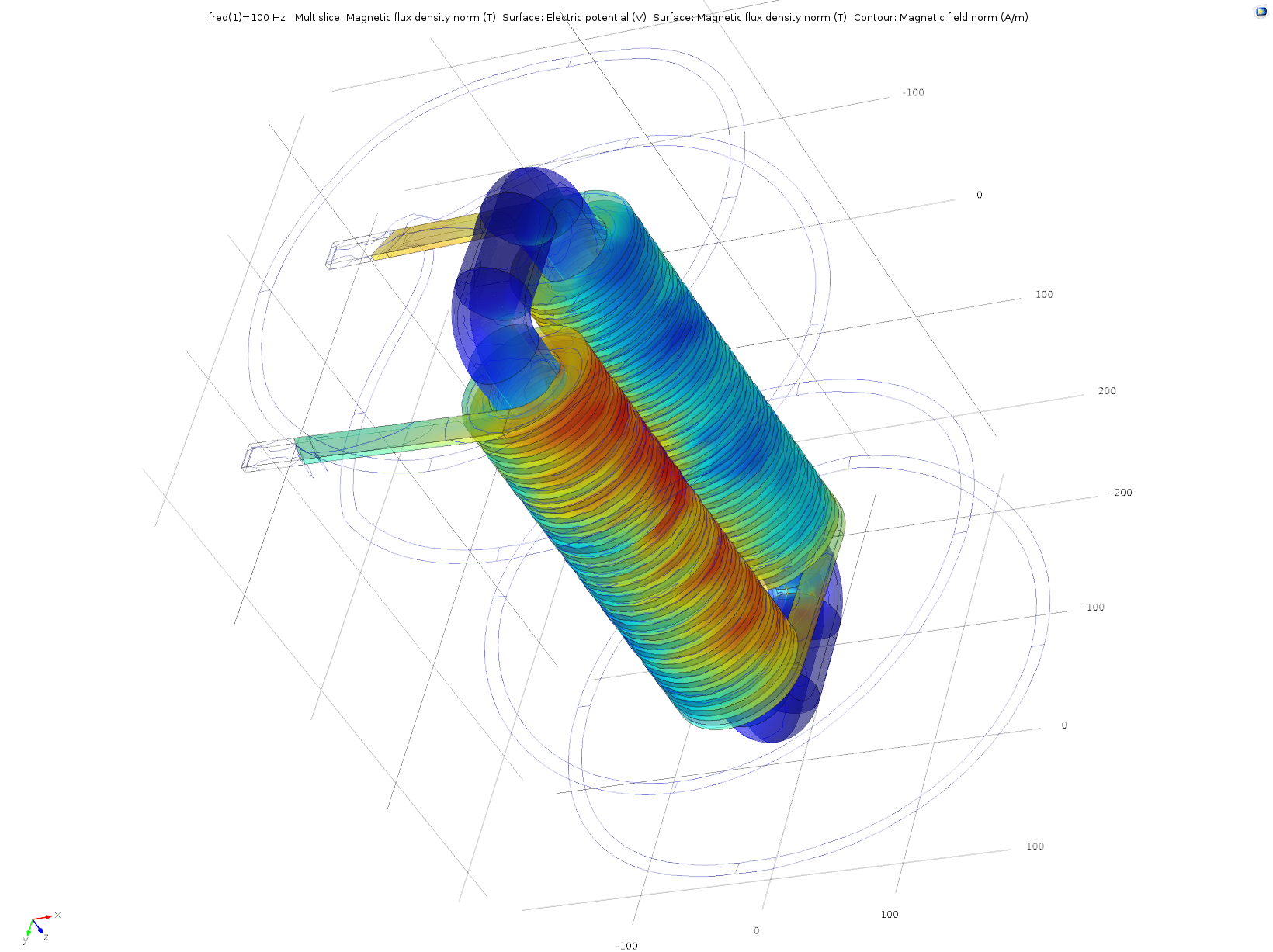

attaches is picture of model and model file.
I hope someone can help me.
--
:)
