Construction in 3D

Posted 7 oct. 2015, 15:23 UTC−4 Geometry Version 4.4 3 Replies

Lukas Varacka
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

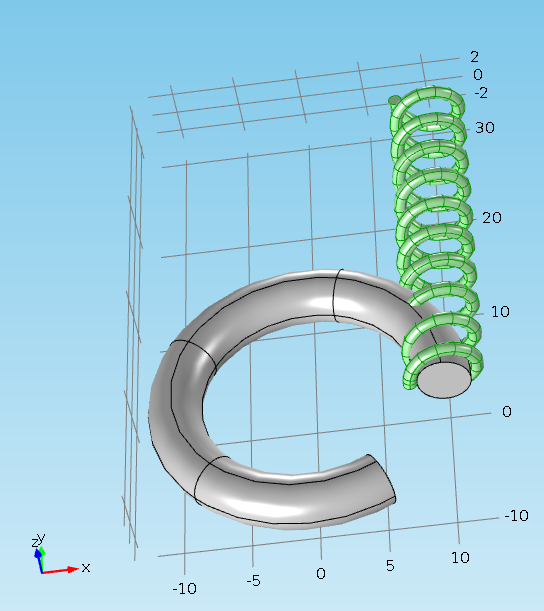

I have one maybe trivial problem.. How can I curve helix around any construction or angle in 3D model? In attached picture it is around siple "C" solid (300°) for instance. Or is this specific case to do faster by 2D workplane?

Attachments:

3 Replies Last Post 9 oct. 2015, 11:16 UTC−4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 8 oct. 2015, 16:41 UTC−4
You can build the geometric shape you wish by sweeping a disc along a suitably constructed parametric curve.
Best,
Jeff
You can build the geometric shape you wish by sweeping a disc along a suitably constructed parametric curve. Best, Jeff
Lukas Varacka
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 9 oct. 2015, 09:23 UTC−4

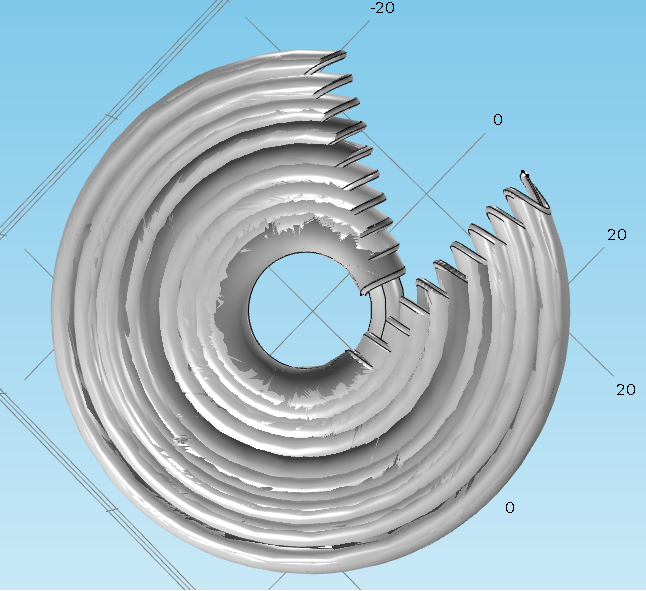

Thank you for response, Jeff. Of course I think so It has to be done by sweep, but I´m doing something wrong. I´m trying to follow this spring by edge of inner circle and the result you can see in attached picture.
Thank you for response, Jeff. Of course I think so It has to be done by sweep, but I´m doing something wrong. I´m trying to follow this spring by edge of inner circle and the result you can see in attached picture.

Attachments:

Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 9 oct. 2015, 11:16 UTC−4
Please post the .mph file.
Jeff
Please post the .mph file. Jeff
