Help with material selection
Posted 13 août 2015, 18:27 UTC−4 1 Reply
Please login with a confirmed email address before reporting spam

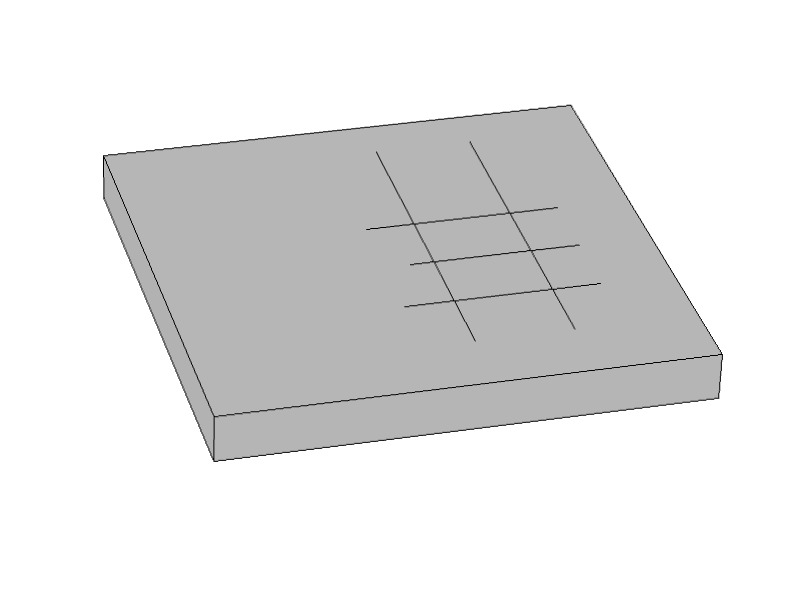

Please look at the attached file. I want to:
1. make the block to be of silicon.
2. the lines on the surface will be carbon.
How do I do this?
P.S. the problem I am facing right now is: when I select the block to be of silicon, the lines turn into silicon by default.
Any help is appreciated. Thanks in advance.
1. make the block to be of silicon.
2. the lines on the surface will be carbon.
How do I do this?
P.S. the problem I am facing right now is: when I select the block to be of silicon, the lines turn into silicon by default.
Any help is appreciated. Thanks in advance.
Attachments:
1 Reply Last Post 17 août 2015, 08:46 UTC−4
Please login with a confirmed email address before reporting spam
Posted:
9 years ago
Hi,
You can assign materials to different dimensions by choosing different geometric entity levels.
Best,
Mao
You can assign materials to different dimensions by choosing different geometric entity levels.
Best,
Mao
