Current in a hollow multi-coil

Posted 13 mai 2015, 06:51 UTC−4 Low-Frequency Electromagnetics Version 4.3, Version 4.4, Version 5.0, Version 5.1 1 Reply

Jose Esteban
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi.

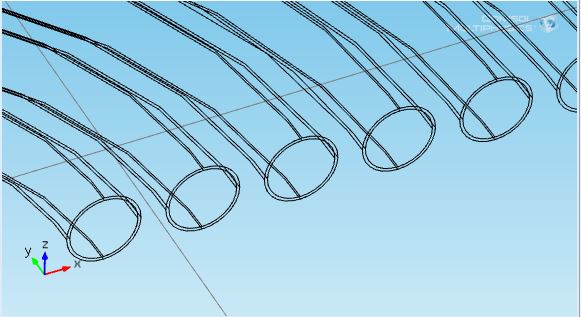

I always set the current in the solid coils setting one terminal to x Amperes and the opposite one as ground. But now im working with inductive pipes -hollow wires as seen in the jpg below- and I dont know if im setting the current in the right way.

How would you make the currents flow in this system? Im a bit lost, Im afraid. Is there a better way to set currents apart of the terminal/ground system?

I cant work in axysimetric because the porpuse is to set non-simetric elements later.

Thanks a lot.

Attachments:

1 Reply Last Post 19 mai 2015, 08:35 UTC−4
Jose Esteban
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 19 mai 2015, 08:35 UTC−4
Hi, everyone.

I couldnt solve my problem yet, and I wonder if anyone could give me a hint to a simple question, besides it is hollow or solid conductor, nevermind:

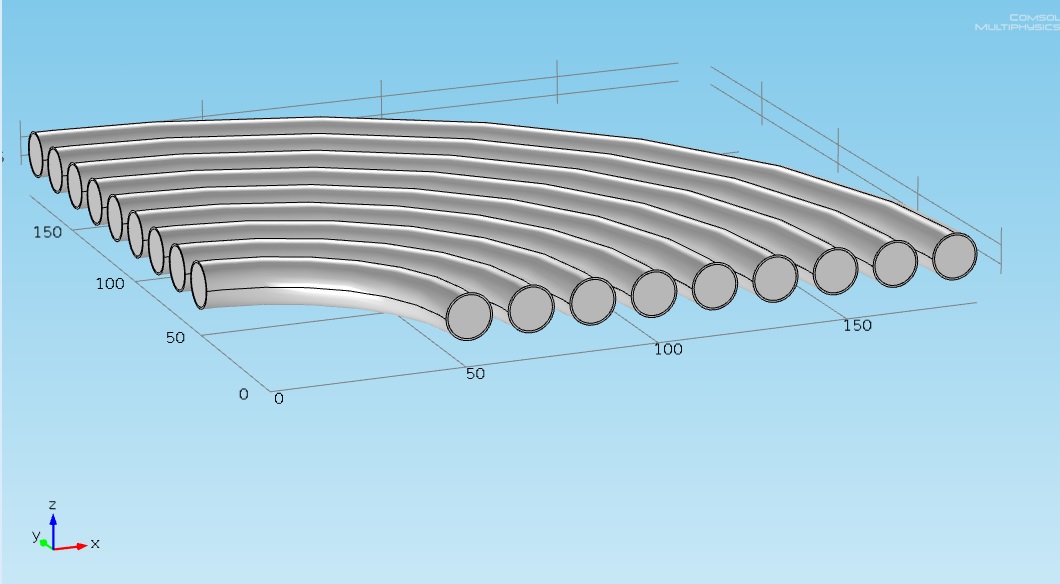

---Acording to the coil in the image, how would you set the current (160A each wire)? Terminal - Ground method?---

I have tried all I can.

Thanks a lot.
Hi, everyone. I couldnt solve my problem yet, and I wonder if anyone could give me a hint to a simple question, besides it is hollow or solid conductor, nevermind: ---Acording to the coil in the image, how would you set the current (160A each wire)? Terminal - Ground method?--- I have tried all I can. Thanks a lot.

Attachments:
