2D waveguide with comsol

Please login with a confirmed email address before reporting spam

Hello,

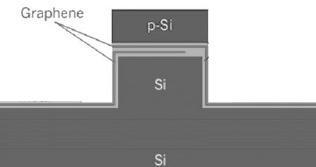

I am trying to simulate the modulator with graphene. The graphene is in the middle of the waveguide, the attachment is the Cross-sectional view of it. I want to study the mode of the waveguide, and calculate the loss caused by the absorption of graphene in 2D . But the graphene is too thin compared with the part of other layer. I don’t know how to create the mode and build the mesh. Can anyone give me some advice? Thank you!


1 Reply Last Post 22 juin 2016, 01:27 UTC−4
COMSOL Moderator

Hello Yu Wu

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.


Please login with a confirmed email address before reporting spam

Posted: 8 years ago 22 juin 2016, 01:27 UTC−4
Try modeling your graphene sheet as a Transition Boundary Condition instead of a geometrical entity.
Try modeling your graphene sheet as a Transition Boundary Condition instead of a geometrical entity.
