1D plot of electric potential distribution
Posted 4 mai 2024, 13:03 UTC−4 Low-Frequency Electromagnetics, Results & Visualization, Physics Interfaces Version 6.2 1 Reply
Please login with a confirmed email address before reporting spam
I am working on impact of grading rings on electric field and potential distribution in composite insulators.

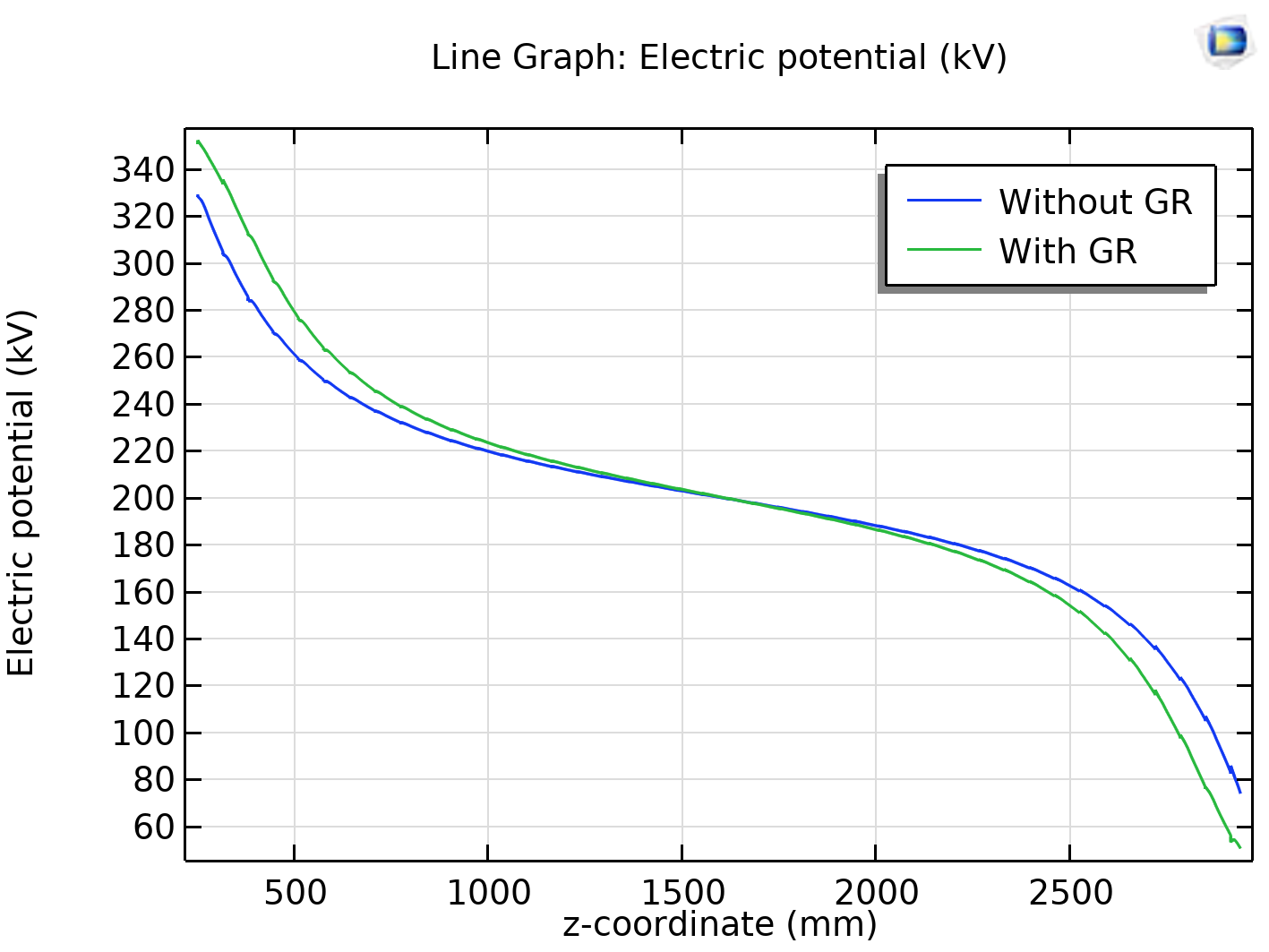

I'm trying to plot the electric potential distribution but the 1D plot seems to be wrong as the grading ring is not reducing the voltage at the terminal. I am not sure if I am using the right expression. I need some help with this. The electric field seems to be okay as there was an exam in the ACDC module
Obinna!
Attachments:
Please login with a confirmed email address before reporting spam
Although it is possible that someone here just might be able to guess the answer to your question without any additional information, I encourage you to post your .mph file to the forum, so that it can be reviewed by others here, and so that the issue(s) in your particular model will be easier to identify.
