Sphere-Sphere Forces
Posted 16 oct. 2012, 09:45 UTC−4 7 Replies
Please login with a confirmed email address before reporting spam
Hello. Firstly, greetings to everyone, I am new here.
So, I am trying to build a model based on this article:
www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=2&cad=rja&ved=0CCoQFjAB&url=http%3A%2F%2Fwww.victoria.ac.nz%2Fscps%2Fabout%2Fstaff%2Fpdf%2FElectrostatic-calibration-of-spheresphere-forces.pdf&ei=jF19UIPEL9ORhQfbsYC4AQ&usg=AFQjCNHvsG40c8nlNlCR3yx7YKBfey-tXw&sig2=HC5XPGRvo0qippVGnfngLg
I am also new to electrostatic modeling, but I have some basic Comsol knowledge.
My model contains two copper spheres with potentials Va and Vb and a large sphere representing surrounding medium (vacuum). I have selected Force Calculation domain condition and I tried Electric Potential and Terminal boundary conditions on the spheres.
In the article, it is described: '' When Va=Vb the force is repulsive at all distances, otherwise the force becomes attractive when the approach is close enough. Attraction occurs between spheres both at positive potential because of mutual polarization: for spheres with equal radii, the sphere at lower potential obtains a negatively charged region neighbouring the other sphere.''
I tried many different settings and I can't seem to get the described result, especially the reversal of the force direction. Am I missing something fundamental or just any detail? Is this a phenomenon that can be modeled using Comsol?
Regards,
Tomi
So, I am trying to build a model based on this article:
www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=2&cad=rja&ved=0CCoQFjAB&url=http%3A%2F%2Fwww.victoria.ac.nz%2Fscps%2Fabout%2Fstaff%2Fpdf%2FElectrostatic-calibration-of-spheresphere-forces.pdf&ei=jF19UIPEL9ORhQfbsYC4AQ&usg=AFQjCNHvsG40c8nlNlCR3yx7YKBfey-tXw&sig2=HC5XPGRvo0qippVGnfngLg
I am also new to electrostatic modeling, but I have some basic Comsol knowledge.
My model contains two copper spheres with potentials Va and Vb and a large sphere representing surrounding medium (vacuum). I have selected Force Calculation domain condition and I tried Electric Potential and Terminal boundary conditions on the spheres.
In the article, it is described: '' When Va=Vb the force is repulsive at all distances, otherwise the force becomes attractive when the approach is close enough. Attraction occurs between spheres both at positive potential because of mutual polarization: for spheres with equal radii, the sphere at lower potential obtains a negatively charged region neighbouring the other sphere.''
I tried many different settings and I can't seem to get the described result, especially the reversal of the force direction. Am I missing something fundamental or just any detail? Is this a phenomenon that can be modeled using Comsol?
Regards,
Tomi
7 Replies Last Post 5 nov. 2012, 05:23 UTC−5
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hello, Tomo
I suggest you to define an external (spherical) layer and there set Infinite Elements, and in the most external boundary set condition to Ground. You can set all the domains as air, and one Force Calculation domain condition per each little sphere. This way you'll be able to compute the forces.
Bye,
Jesus.
I suggest you to define an external (spherical) layer and there set Infinite Elements, and in the most external boundary set condition to Ground. You can set all the domains as air, and one Force Calculation domain condition per each little sphere. This way you'll be able to compute the forces.
Bye,
Jesus.
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Thank you, Jesus. Now it seems to be working correctly.
With Infinite Elements layer the surrounding medium domain can now be smaller, correct? What is the usual recommendation for the ratio? My surrounding medium sphere is now ten times the radius of the small sphere.
Bye,
Tomo
With Infinite Elements layer the surrounding medium domain can now be smaller, correct? What is the usual recommendation for the ratio? My surrounding medium sphere is now ten times the radius of the small sphere.
Bye,
Tomo
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hello, Tomo,
You are right. I don't know if there is any recommendation for the ratio between spheres radius. I think ten is good choice.
Jesus.
You are right. I don't know if there is any recommendation for the ratio between spheres radius. I think ten is good choice.
Jesus.
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
For decaying fields I use about 1/ten ratio, for waves I used a few wavelength minimum (anyhow these stretch as the inf elements goes out). It is discussed in the doc somewhere, just cant remember eactly where, try a search
--
Good luck
Ivar
For decaying fields I use about 1/ten ratio, for waves I used a few wavelength minimum (anyhow these stretch as the inf elements goes out). It is discussed in the doc somewhere, just cant remember eactly where, try a search
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hello again,

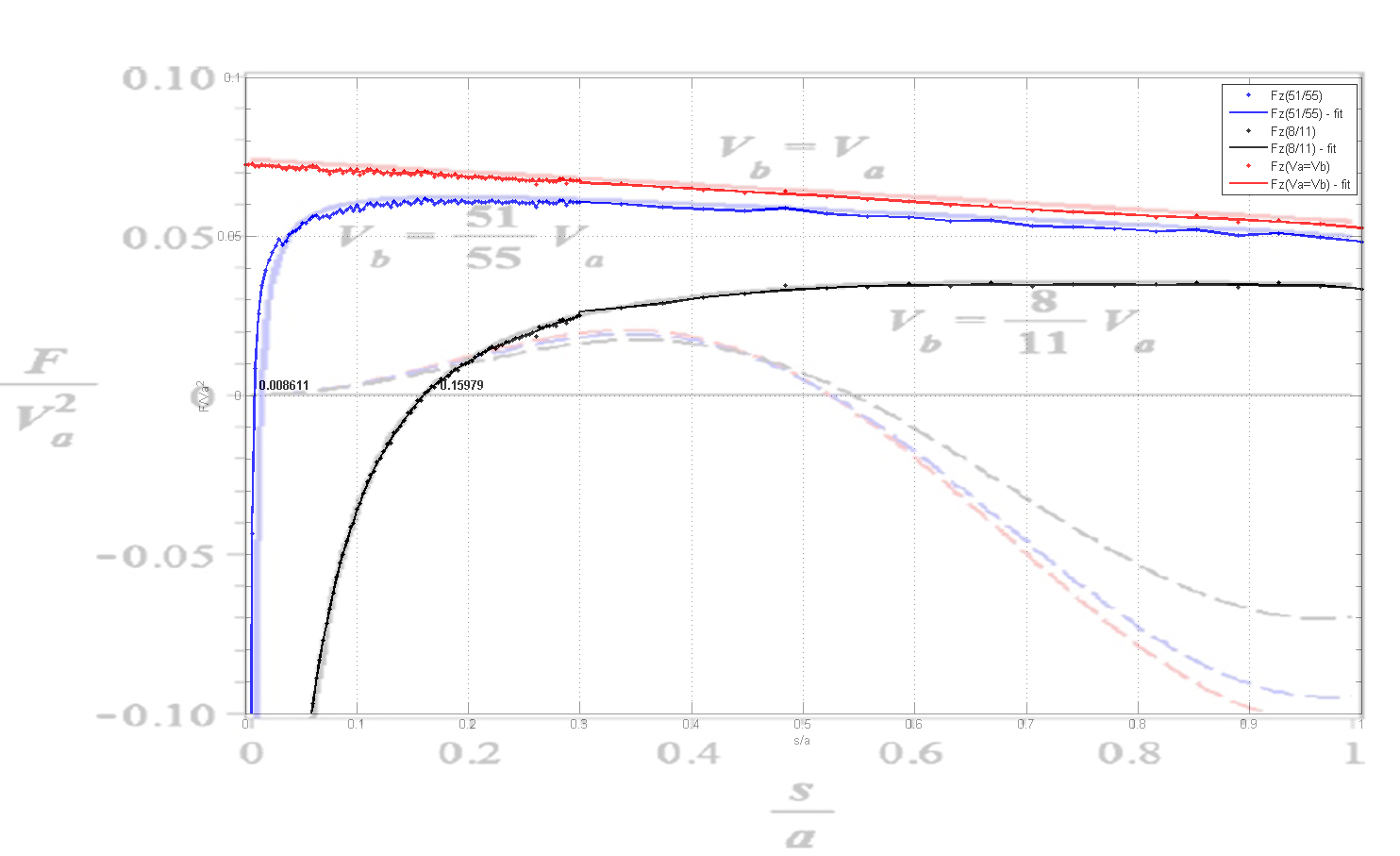

I have successfully recreated the desired results with only one difference. They are off by a factor of 2, i.e. twice as big as in the article. In the attached picture are my results(divided by 2) photoshoped over the graph from the article. They align as they should.
Now I cannot find the reason for the factor of two. I tried rebuilding the model, different parameters, mesh sizes; the results are always the same. Then I tried to calculate the force manually via integration of the Maxwell Stress Tensor: the same.
We contacted the author of the article, and he suggested we calculate the forces for a large separation between spheres. We did and we compared them to a calculation for a force between two charges, which should be a good enough approximation for a large separation. Yes, they are also off and the results divided by 2 align perfectly.
Any ideas about this?
--
Regards,
Tomo
I have successfully recreated the desired results with only one difference. They are off by a factor of 2, i.e. twice as big as in the article. In the attached picture are my results(divided by 2) photoshoped over the graph from the article. They align as they should.
Now I cannot find the reason for the factor of two. I tried rebuilding the model, different parameters, mesh sizes; the results are always the same. Then I tried to calculate the force manually via integration of the Maxwell Stress Tensor: the same.
We contacted the author of the article, and he suggested we calculate the forces for a large separation between spheres. We did and we compared them to a calculation for a force between two charges, which should be a good enough approximation for a large separation. Yes, they are also off and the results divided by 2 align perfectly.
Any ideas about this?
--
Regards,
Tomo
Attachments:
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
which version are you using?
if I remember right there was a factor 2 missing in some ACDC internal variables in the early 4.0, could it be that ?
--
Good luck
Ivar
which version are you using?
if I remember right there was a factor 2 missing in some ACDC internal variables in the early 4.0, could it be that ?
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
I am using 4.3.
It seems that I have managed to eliminate the problem. I really don't know what the problem was, but I rebuilt the model once again and now the results are correct. I can not find the difference in the models, but one of the two gives the correct results and the other one does not. I must have made some mistake somewhere, because after another rebuild the results are still correct.
Anyway, thank you for your help. I will try to triple-check in the future before posting here.
Regards,
Tomo
It seems that I have managed to eliminate the problem. I really don't know what the problem was, but I rebuilt the model once again and now the results are correct. I can not find the difference in the models, but one of the two gives the correct results and the other one does not. I must have made some mistake somewhere, because after another rebuild the results are still correct.
Anyway, thank you for your help. I will try to triple-check in the future before posting here.
Regards,
Tomo
