Variable electric potensial

Posted 7 mai 2022, 13:21 UTC−4 Electromagnetics, Low-Frequency Electromagnetics, Charged Particle Tracing 0 Replies

Ajay Mohan cyclotron
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

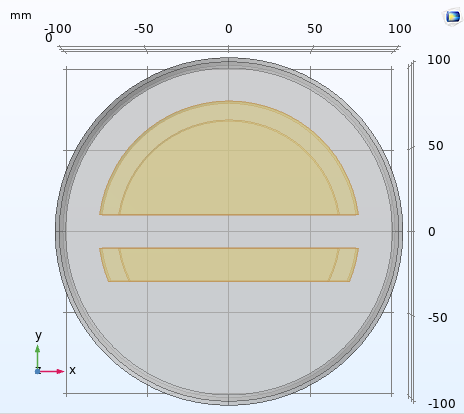

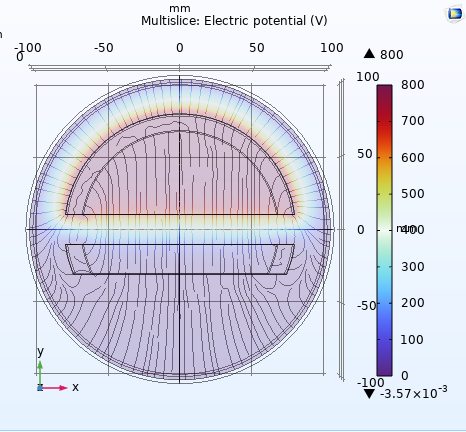

In this model i have a part given potential (-800v) while the other is grounded.

Anyone has an idea on how to change the potential alternately from +800v to -800v with a waveform function?

V0wv1(sin(ft))

Does this equation satisfy this query with frequency given as 2.81 MHz?

Any suggestions?

0 Replies Last Post 7 mai 2022, 13:21 UTC−4
