How to build a sinusoidal surface in 2D by using COMSOL Geometry

Posted 13 avr. 2022, 01:27 UTC−4 Ray Optics, Wave Optics, CAD Import & LiveLink™ Products for CAD Version 6.0 1 Reply

Vaswati Biswas
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

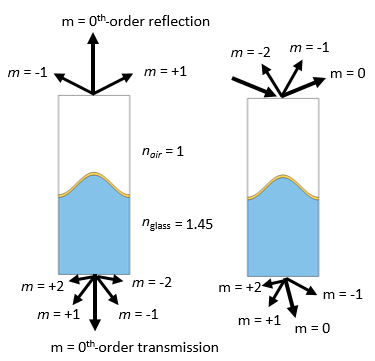

Dear All I am pretty new to COMSOL and I am working on sinusoidal grating surface. I want to simulate the surface as shown in the attached image. Kindly tell me how to build such kind of surface by using COMSOL geomtry?

1 Reply Last Post 13 avr. 2022, 03:05 UTC−4
Mark Harradine
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 13 avr. 2022, 03:05 UTC−4

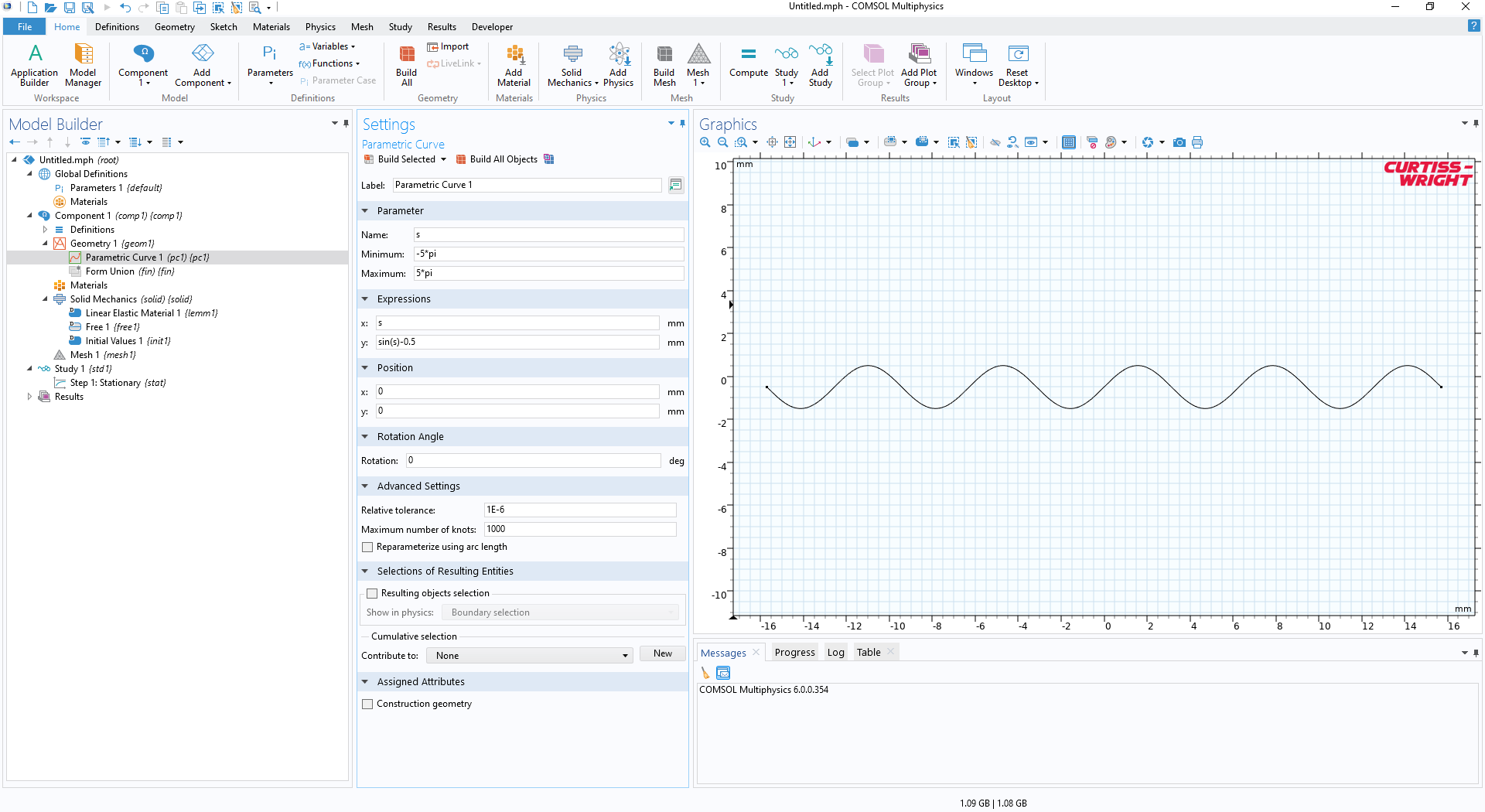

Use the parametric curve, found under "more primitives" when right clicking the Geometry node.

You can scale it accordingly...

Use the parametric curve, found under "more primitives" when right clicking the Geometry node. You can scale it accordingly...

Attachments:
