Applying boundary condition on imported mesh

Posted 26 janv. 2022, 23:42 UTC−5 Geometry, Mesh Version 5.6 0 Replies

Chironjeet Chaki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

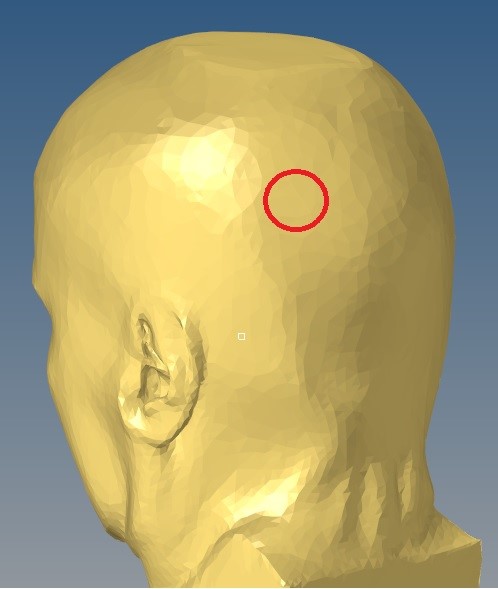

Hi, I've imported 5 different mesh (3D tetrahedral) files (head geometry) as NASTRAN format into COMSOL under component>mesh and want to run a opto-thermal simulation. But I want to make a surface domain (a circle) with a radius of 15-20mm onto a 3D mesh (like attached) where I'd like to assign a boundary condition. Is it possible in COMSOL? If so, can anyone please assist me of doing this?

NB. I'm not making geometry from mesh. Directly applying the boundary condition into the mesh. Using COMSOL 5.6.

Thanks a lot in advance.

Best regards, Chironjeet

Attachments:

0 Replies Last Post 26 janv. 2022, 23:42 UTC−5
COMSOL Moderator

Hello Chironjeet Chaki

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
