How to modify the line width of 1D Plot Group?

Posted 17 juin 2021, 23:08 UTC−4 General, Results & Visualization Version 5.6 2 Replies

HC L solid mechanics
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi there,

A Line Graphe has been generated in Comsol, and I want to copy it to MS.word.

On the "Image Snapshot" window, I can modify the font size, color theme, etc.

But the line is too slim.

How to modify the line width?

Best Regards

2 Replies Last Post 22 juin 2021, 09:43 UTC−4
Robert Koslover Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 18 juin 2021, 14:14 UTC−4

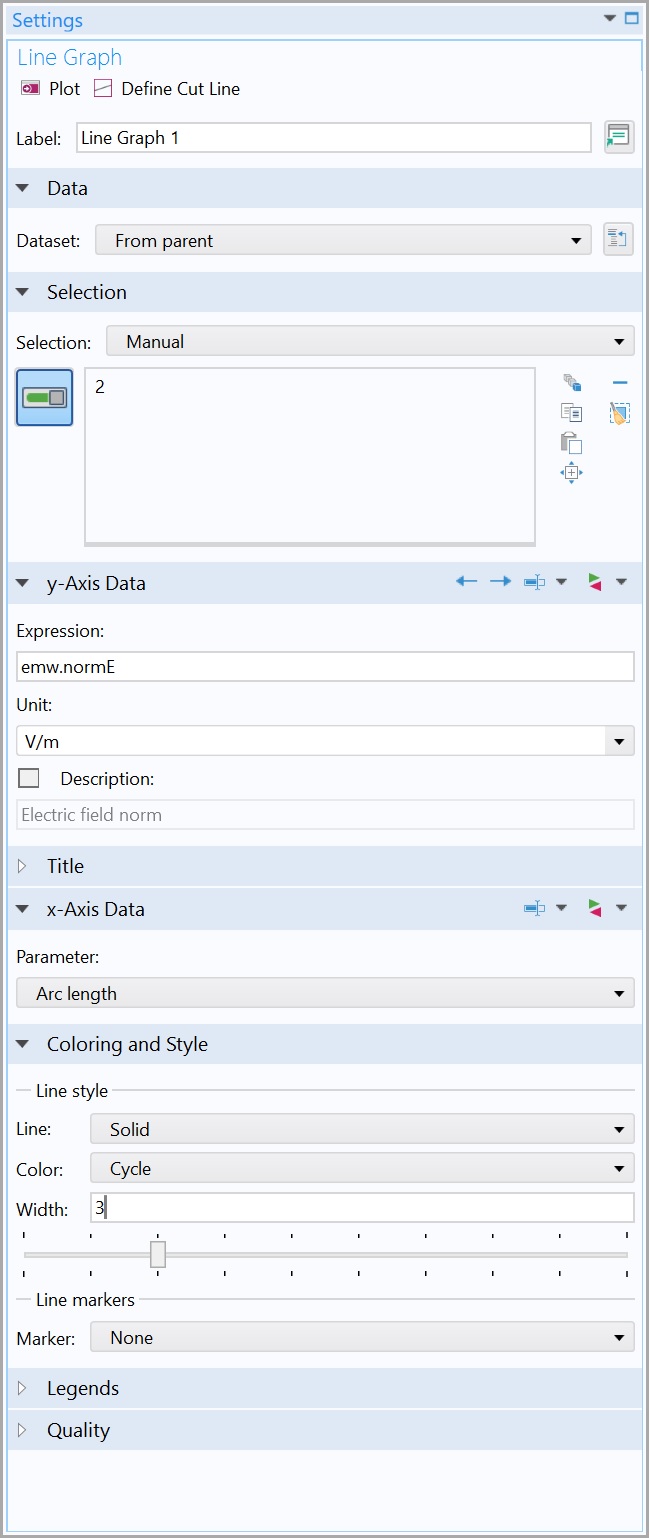

For the plot in question, go to Settings, and Coloring and Style. Under Line style, change the Width value to a number larger than 1. See the attached figure.

-------------------
Scientific Applications & Research Associates (SARA) Inc.
www.comsol.com/partners-consultants/certified-consultants/sara
For the plot in question, go to Settings, and Coloring and Style. Under Line style, change the Width value to a number larger than 1. See the attached figure.

Attachments:

HC L solid mechanics
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 22 juin 2021, 09:43 UTC−4
Updated: 3 years ago 22 juin 2021, 09:44 UTC−4

For the plot in question, go to Settings, and Coloring and Style. Under Line style, change the Width value to a number larger than 1. See the attached figure.

It works. Thank you so~ much.

>For the plot in question, go to Settings, and Coloring and Style. Under Line style, change the Width value to a number larger than 1. >See the attached figure. It works. Thank you so~ much.
