Mesh query regarding open boundary FSI simulation

Posted 3 mai 2012, 10:02 UTC−4 MEMS & Nanotechnology, Fluid & Heat, MEMS & Piezoelectric Devices, Microfluidics, Geometry, Mesh Version 4.2a 1 Reply

Jaap Verheggen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I've got a model in FSI which consists of two inlets to a central reservoir with a membrane on top.
When I use normal mesh settings, the mesh quality at the inlets is horrible.
Am I forgetting a boundary condition? Or is there something I can do regarding the mesh?
I apply simple open boundary conditions to the inlets.

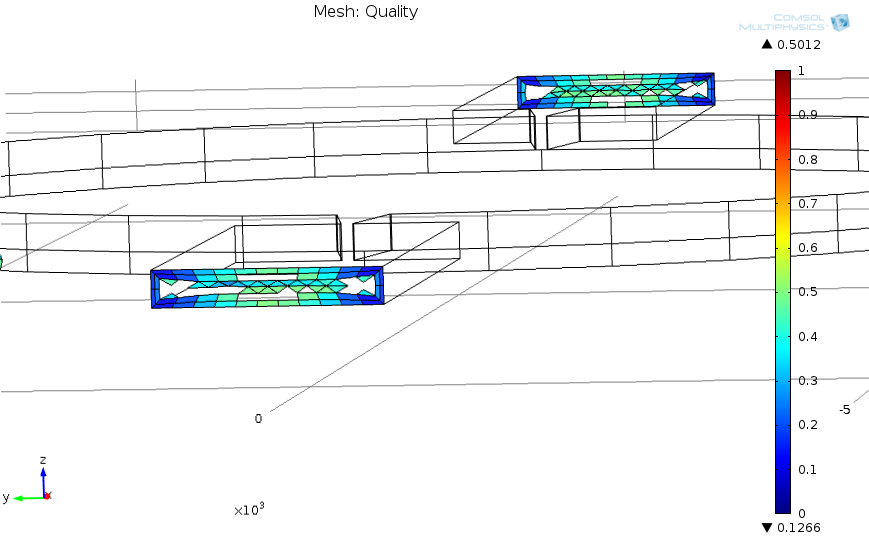

See attached picture, I've filtered to show only the worst mesh quality,

any idea how to improve this mesh?

Attachments:

1 Reply Last Post 3 mai 2012, 10:31 UTC−4
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 3 mai 2012, 10:31 UTC−4
Hi

I beleive what you see is the boundary mesh limit, to make it mode dens, start meshing the inlets (and perhaps add the outlet), as a first tri boundary mesh, make it fine or extrremely fine, then leave COMSOL mesh "automaticall"y the rest with a reasonable resolution

--
Good luck
Ivar
Hi I beleive what you see is the boundary mesh limit, to make it mode dens, start meshing the inlets (and perhaps add the outlet), as a first tri boundary mesh, make it fine or extrremely fine, then leave COMSOL mesh "automaticall"y the rest with a reasonable resolution -- Good luck Ivar
