SAW device , application of electric potential

Posted 2 mars 2021, 10:00 UTC−5 Piezoelectric Devices, MEMS & Piezoelectric Devices, Microfluidics Version 5.4 3 Replies

Luigi Agazzi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

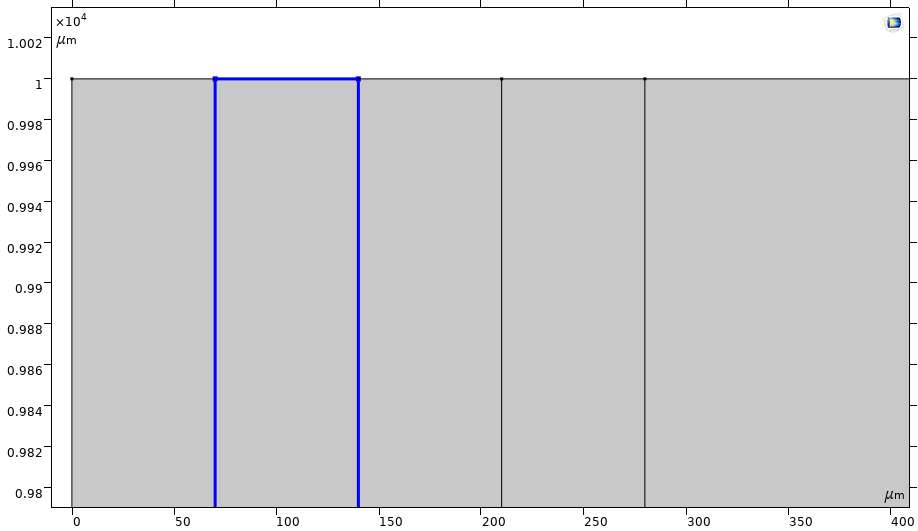

I am tring to model SAW device for microfluidics. My model is 2D model seen from the top. The electrodes are rectangles on a piezoelctric substrate (as reported in the picture). When I have to apply the electric potential on them, comsol allows the selection of the boundaries only, of the rectangles (blue line in the picture uploaded).

But, is the potential also applied on the nodes inside the rectangles? How I can check if the electric potential is applied to all the electrode?

Attachments:

3 Replies Last Post 3 mars 2021, 19:56 UTC−5
Luigi Agazzi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 3 mars 2021, 11:11 UTC−5

Any help?

Any help?
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 3 mars 2021, 12:16 UTC−5

Luigi,

You should use a terminal BC to apply a voltage to a 2D domain. I am not sure about your setup and whether it is suitable to model an SAW device. I recomment to check the SAW example in the application library.

Cheers Edgar

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Luigi, You should use a terminal BC to apply a voltage to a 2D domain. I am not sure about your setup and whether it is suitable to model an SAW device. I recomment to check the SAW example in the application library. Cheers Edgar
Dave Greve
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 3 mars 2021, 19:56 UTC−5

I concur, that geometry does not model a surface acoustic wave, either in plane strain or plane stress.

I concur, that geometry does not model a surface acoustic wave, either in plane strain or plane stress.
