Plotting the angle of the corners of this flapping & rotating plate

Posted 1 sept. 2020, 03:41 UTC−4 Structural Mechanics Version 5.1 2 Replies

Amanuel Mamo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi Guys,

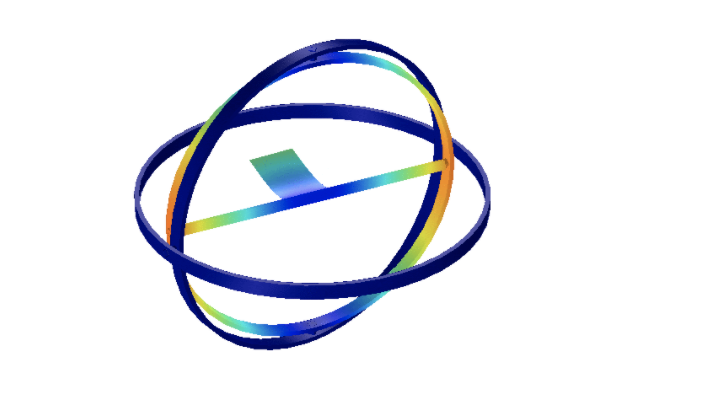

This is a flapping and roatating plate used for simulating an insect wing. When this wing rotates as it flaps it creates torsional force. And, I wanted to plot the angle as a function of time of corners at the tip of the plate. The base has a fixed constraint. I just want tips on how to achive this and what data I need from COMSOL.

2 Replies Last Post 2 sept. 2020, 04:25 UTC−4
Pawan Soami COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 1 sept. 2020, 09:35 UTC−4

Dear Amanuel,

If you are looking for flapping motion with respect to the rotating frame instead of combined flapping and rotation motion w.r.t fixed/spatial frame, you can use Body defining reference frame functionality in the Multibody Dynamics interface. Here the rotating body can be defined as a reference frame and results can be visualized with respect to this frame.

Best regards,
Pawan Soami

Dear Amanuel, If you are looking for flapping motion with respect to the rotating frame instead of combined flapping and rotation motion w.r.t fixed/spatial frame, you can use *Body defining reference frame* functionality in the *Multibody Dynamics* interface. Here the rotating body can be defined as a reference frame and results can be visualized with respect to this frame. Best regards, Pawan Soami
Amanuel Mamo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 2 sept. 2020, 04:25 UTC−4

Wonderful! Thank you very much for the great tip! I will try that!

However, I actually wanted the combined flapping and rotation motion as a function of time (temporal). Any idea on how to do that?

Wonderful! Thank you very much for the great tip! I will try that! However, I actually wanted the combined flapping and rotation motion as a function of time (temporal). Any idea on how to do that?
