RLC series circuit

Posted 21 févr. 2020, 09:07 UTC−5 Electromagnetics, Low-Frequency Electromagnetics, Plasma Physics Version 5.4 1 Reply

Sinéad Mannion Plasma Physics
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

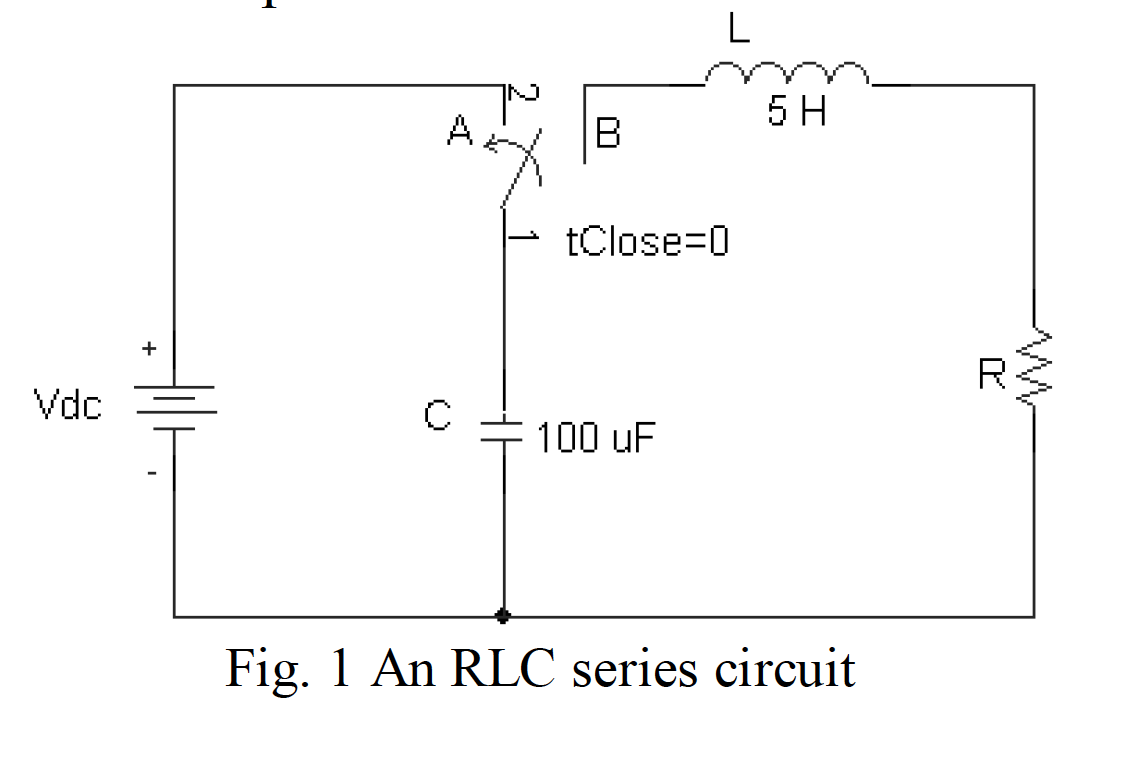

Could someone please help me model the attached RLC circuit please?

Kind regards,

Sinéad

Attachments:

1 Reply Last Post 28 mars 2020, 15:45 UTC−4
COMSOL Moderator

Hello Sinéad Mannion

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Okan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 28 mars 2020, 15:45 UTC−4

Hi Sinead, Do you want to model in CIR physics? A I understand, C is coupled with source and then switch is on and C will feed the rest of the circuit. Is it true? Regards, Okan

-------------------
Prof. Dr. Okan Ozgonenel
Samsun - TURKEY
Hi Sinead, Do you want to model in CIR physics? A I understand, C is coupled with source and then switch is on and C will feed the rest of the circuit. Is it true? Regards, Okan
