Loop Variable Correlation Was Detected

Posted 10 mai 2019, 03:56 UTC−4 Structural & Acoustics, General, Computational Fluid Dynamics (CFD) 4 Replies

Qing He
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello!I meet a problem,when i click the study,it shows a error:Loop variable correlation was detected.If you have met this problem before,could you teach me how to solve it,please................. the error it shows like this: Loop variable correlation was detected. - Variable: comp1.taue - - Geometry: geom1 - - Border: 6

4 Replies Last Post 12 mai 2019, 09:10 UTC−4
Alexis Prel
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 10 mai 2019, 04:11 UTC−4

Hi, It's impossible to help you if you do not provide us with more details about your model and what triggered the error.

The error message mentions a variable in particular: did you check that there was no mistake in its definition? Or the definition of its dependencies?

Hi, It's impossible to help you if you do not provide us with more details about your model and what triggered the error. The error message mentions a variable in particular: did you check that there was no mistake in its definition? Or the definition of its dependencies?
Qing He
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 11 mai 2019, 23:38 UTC−4

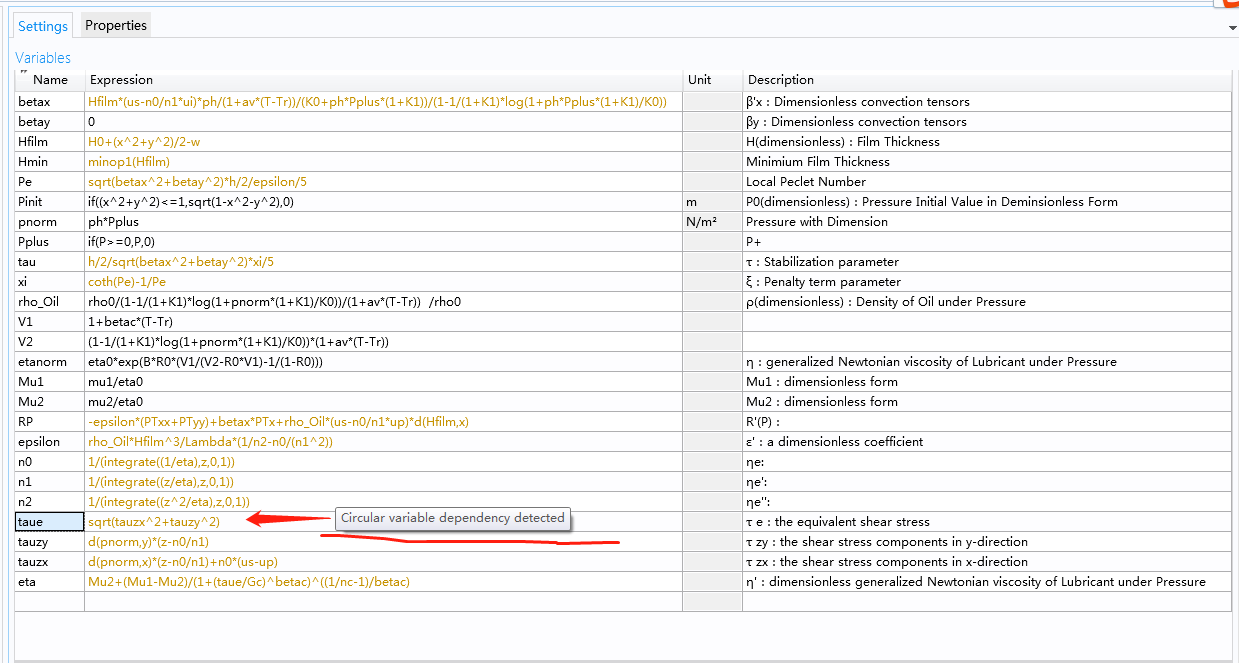

Hi,firstly,I am sorry for my unclear statement and thanks your advice. So,I show you a screenshot: τe(taue) is detected as a circle variable. I think there is no mistake in its definition. And I've been reading a paper that says need to give τe an initial value.So do you know that how I can add an initial value to it? Please.......

Hi,firstly,I am sorry for my unclear statement and thanks your advice. So,I show you a screenshot: τe(taue) is detected as a circle variable. I think there is no mistake in its definition. And I've been reading a paper that says need to give τe an initial value.So do you know that how I can add an initial value to it? Please.......

Attachments:

Alexis Prel
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 12 mai 2019, 04:40 UTC−4
Updated: 6 years ago 12 mai 2019, 04:40 UTC−4

COMSOL is warning you that you have a circular dependency.

And indeed, tau_e depends on n0 and n1 (through tauzx and tauzy), which in turn depend on eta, itself dependent on tau_e.

There might be other circularities but this one is the most obvious.

If your definitions of tau_e, etc. are correct, this means that you must input this as an equation to solve for, but you can't do it as a series of variables.

COMSOL is warning you that you have a circular dependency. And indeed, tau_e depends on n0 and n1 (through tauzx and tauzy), which in turn depend on eta, itself dependent on tau_e. There might be other circularities but this one is the most obvious. If your definitions of tau_e, etc. are correct, this means that you must input this as an equation to solve for, but you can't do it as a series of variables.
Qing He
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 12 mai 2019, 09:10 UTC−4

Uh, thank you very much for your advice, I will seriously think about it.

Uh, thank you very much for your advice, I will seriously think about it.
