Extrude with different values

Posted 1 mai 2018, 10:13 UTC−4 General, Geometry 4 Replies

Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello all,

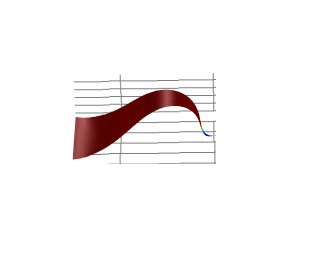

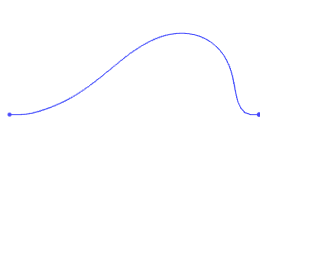

I want to extrude a curve with different values. I mean I want to make some parts of the curve thicker and some parts thinner. How can I do it with extrude operator? I've attached 2 pictures. Could you please help me.

Kind regards

Attachments:

4 Replies Last Post 8 mai 2018, 07:51 UTC−4
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 2 mai 2018, 13:39 UTC−4

You could try to extrude a curve based on the thickness profile from perpendicular plane and then apply partition, delete or logical operations.

Cheers Edgar

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
You could try to extrude a curve based on the thickness profile from perpendicular plane and then apply partition, delete or logical operations. Cheers Edgar
Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 2 mai 2018, 14:01 UTC−4

Dear Edgar,

Could you please explain more?

Kind regards

Dear Edgar, Could you please explain more? Kind regards
Benno Ellerböck
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 6 mai 2018, 06:49 UTC−4

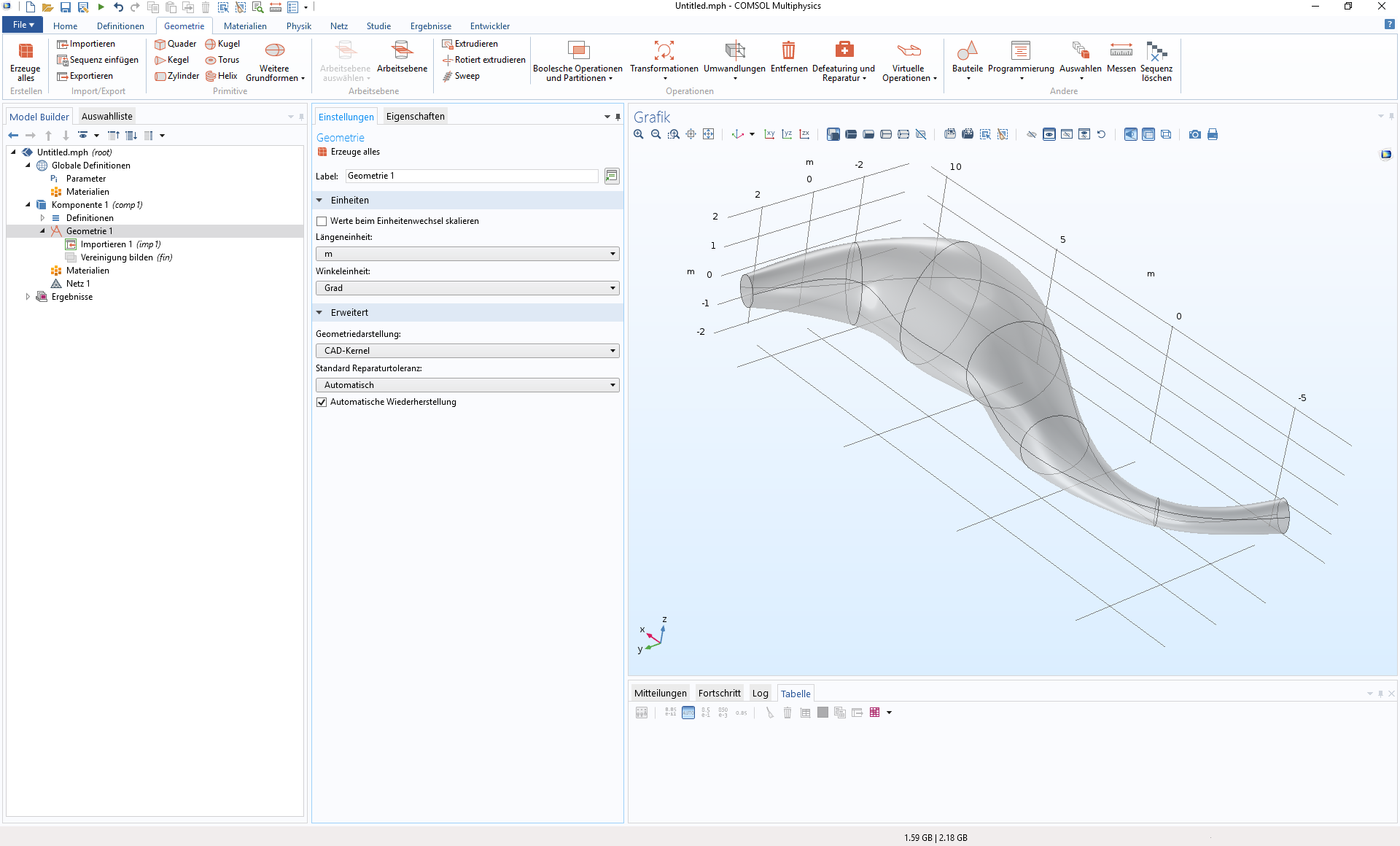

Hello Shaghayegh, you can import such a spline from a 3d-CAD-Programm. It's easy to build a spline with the loft-function (see attached example).

Kind regards Benno from Munich

Hello Shaghayegh, you can import such a spline from a 3d-CAD-Programm. It's easy to build a spline with the loft-function (see attached example). Kind regards Benno from Munich

Attachments:

Sherry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 8 mai 2018, 07:51 UTC−4

Hi Benno,

Great! thanks a lot.

Best regards, Shaghayegh

Hi Benno, Great! thanks a lot. Best regards, Shaghayegh
