Different dispersion curve simulation result

Please login with a confirmed email address before reporting spam

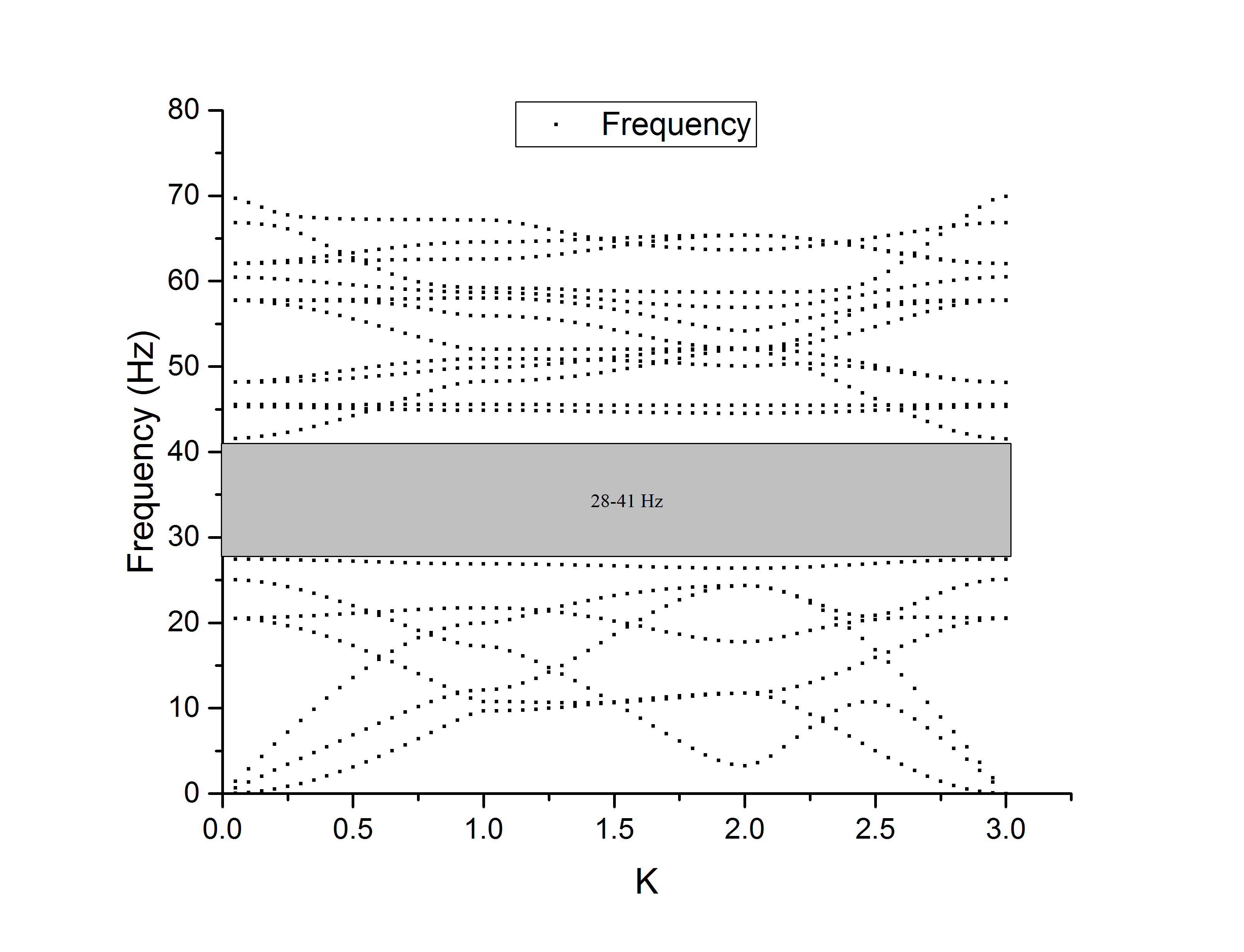

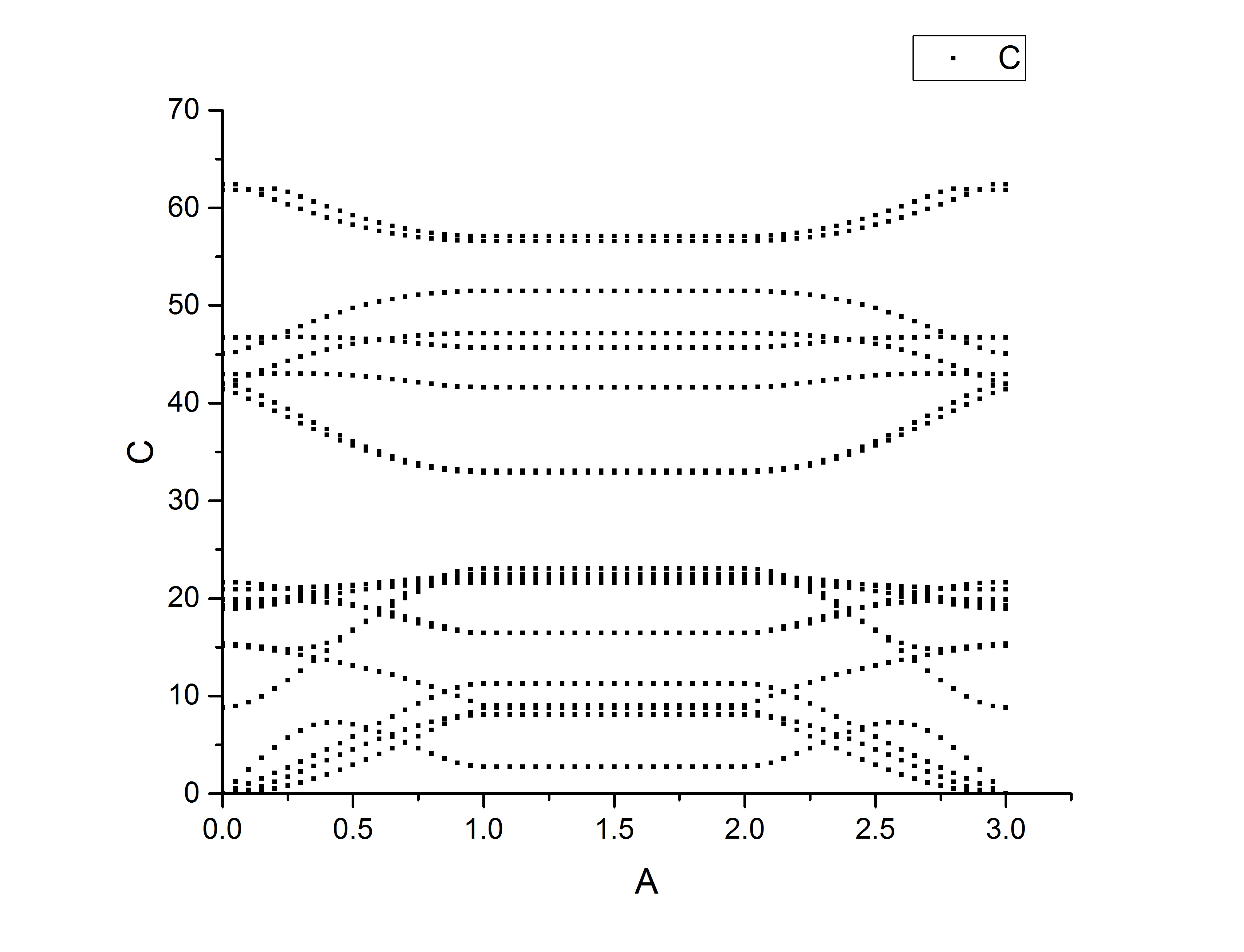

I am working on Solid Mechanics, eigenfrequency module. I am trying to find out the band gap frequency of different shapes. When I am simulating same shape with same material property and boundary condition, I get different dispersion curve and band gap position is also changing. I cross check my model, all parameters and boundary conditions are same. Frequency which I give as input even that is also same. Please check the attached file for difference Please tell me the reason why I am getting different plots.

Thank You
