make the edge of composite object more smooth

Posted 20 mars 2011, 09:37 UTC−4 Geometry Version 3.5a 2 Replies

You Zhe Ho
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello:
I have a simple question about drawing the shape

step1: draw a sphere

step2:draw a cylinder

step3:select all

step4; choose " difference"

but I want to make the edge of composite more smooth so that it is not sharp shape

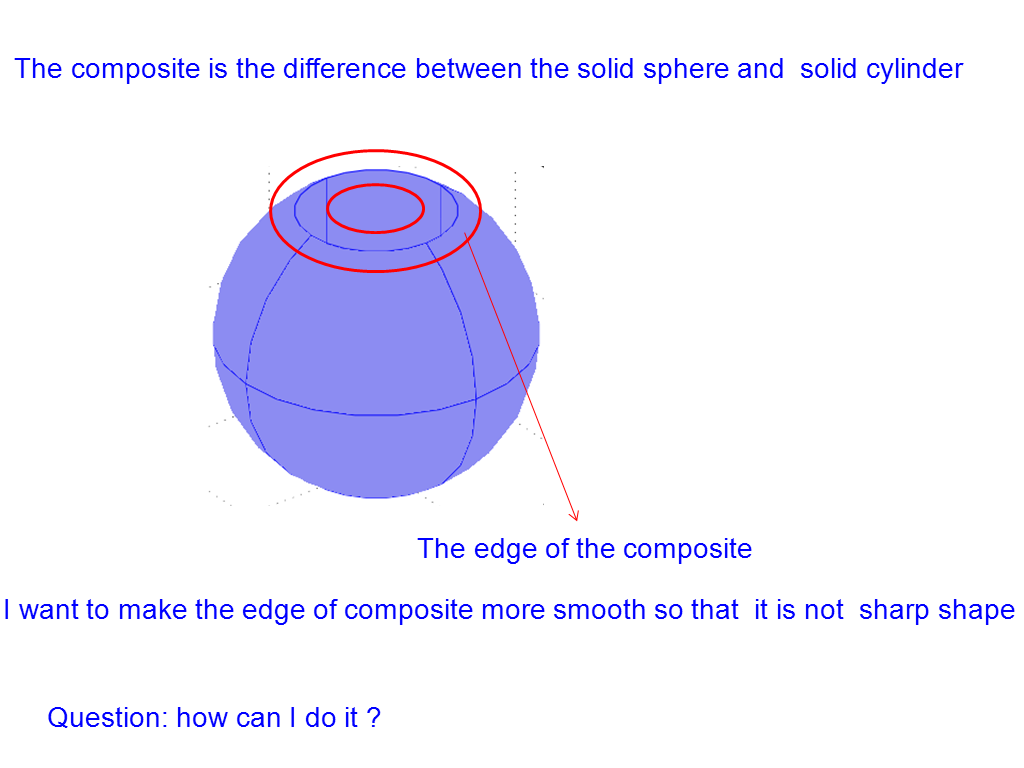

more details in the attachment

Thank you for your help

Attachments:

2 Replies Last Post 4 déc. 2015, 10:10 UTC−5
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 20 mars 2011, 15:30 UTC−4
Hi

you have no fillet options in 3D within COMSOL (you need to use an external CAD programme then. But you can do , in COMSOL, define a workplane, draw a circle, a cut line or a rectangle then make the difference and finally fillet the sharp edge. Then you perform a revolve to get the 3D shape. Have a try

--
Good luck
Ivar
Hi you have no fillet options in 3D within COMSOL (you need to use an external CAD programme then. But you can do , in COMSOL, define a workplane, draw a circle, a cut line or a rectangle then make the difference and finally fillet the sharp edge. Then you perform a revolve to get the 3D shape. Have a try -- Good luck Ivar
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 4 déc. 2015, 10:10 UTC−5
Update on this thread: Nowadays COMSOL does include a direct 3D filleting capability in the Design Module. See www.comsol.com/design-module
Best,
Jeff
Update on this thread: Nowadays COMSOL does include a direct 3D filleting capability in the Design Module. See www.comsol.com/design-module Best, Jeff
