Concentric Pipes flow

Posted 9 juin 2017, 09:23 UTC−4 2 Replies

Erhamah Alsuwaidi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

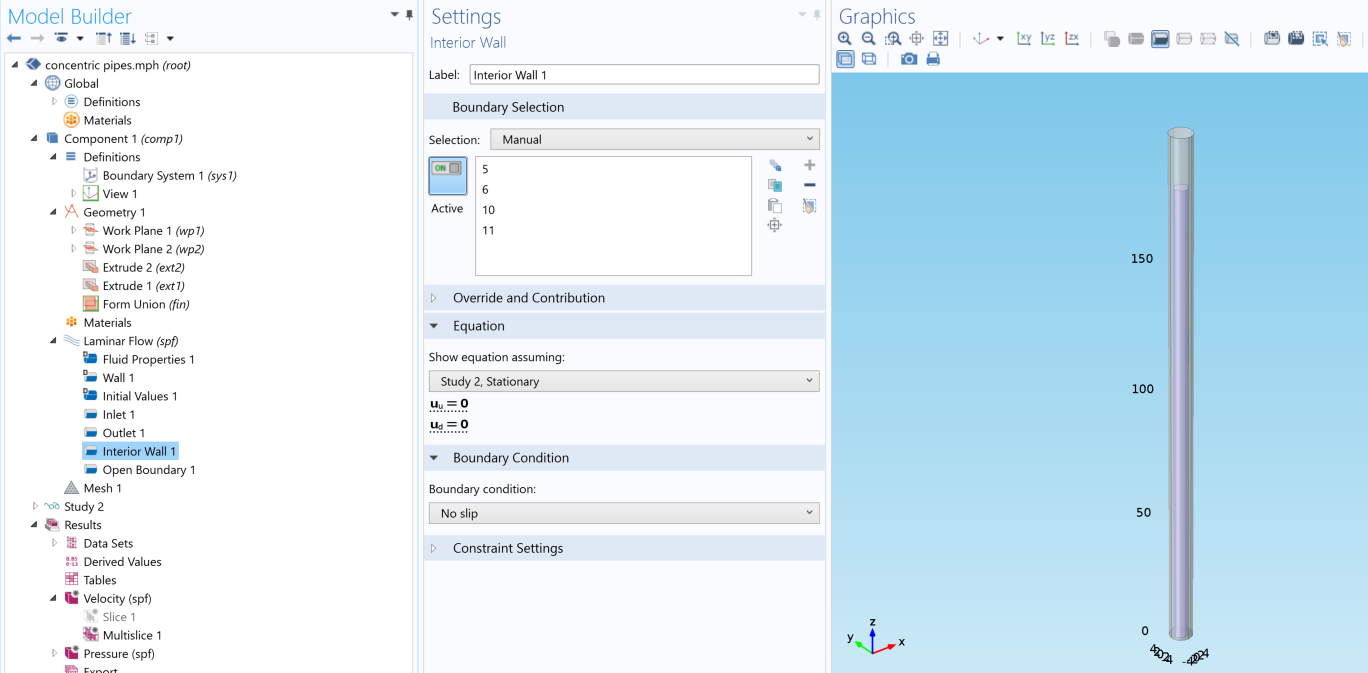

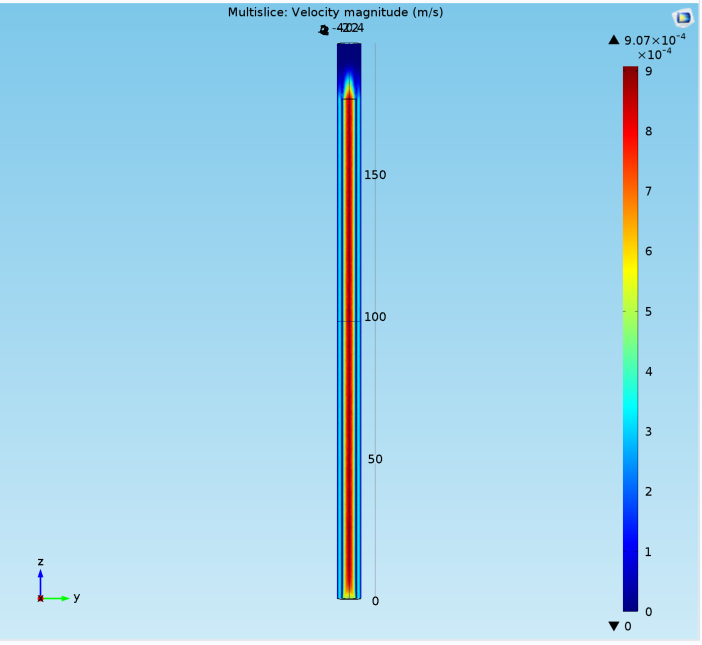

I am trying to simulate fluid flow through two concentric pipes. My model runs properly for low velocities (0.0005 M/S) but not higher once (0.5m/s). Attached are some pictures of the model. Please assist me.

Attachments:

2 Replies Last Post 11 juin 2017, 12:42 UTC−4
Mohammad Amin Kazemi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 10 juin 2017, 21:06 UTC−4
Updated: 7 years ago 10 juin 2017, 21:06 UTC−4
Erhamah,
Have you tried smoothed increase of inlet velocity?
I mean solve it for 0.0005 m/s, use the solution as an initial condition for let's say 0.001 m/s and so forth.
You may also use a parametric sweep study.
Amin,
Erhamah, Have you tried smoothed increase of inlet velocity? I mean solve it for 0.0005 m/s, use the solution as an initial condition for let's say 0.001 m/s and so forth. You may also use a parametric sweep study. Amin,
Erhamah Alsuwaidi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 11 juin 2017, 12:42 UTC−4
Thanks for your reply!

I will try your approach and will let you know. Thanks again!
Thanks for your reply! I will try your approach and will let you know. Thanks again!
