Beautiful streamlines for magnetic field lines of Helmholtz coils

Posted 29 janv. 2017, 08:36 UTC−5 Low-Frequency Electromagnetics, Modeling Tools & Definitions, Parameters, Variables, & Functions, Results & Visualization Version 5.2a 0 Replies

Mohammadamin Tajik
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello!

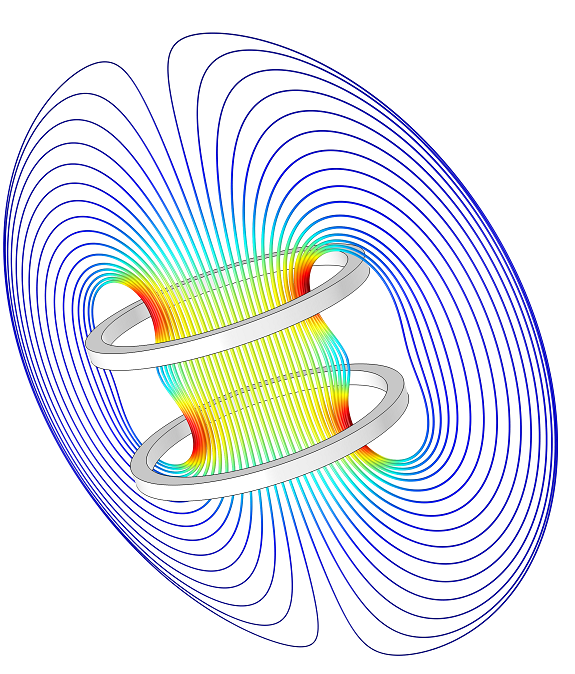

I want to make a nice picture from my Helmholtz coils and the magnetic field lines, like the picture attached.

I read this post : (www.comsol.com/blogs/simulating-helmholtz-coils-comsol-multiphysics/) and followed the instructions to simulate a Helmholtz coils and it was OK.

My problem is, I can't get the streamlines on a surface.
It will be nice if you can give me a step by step instruction with which I can make a nice picture from the coils and the field lines.

Thank you very much in advance.

Cheers,
Amin
