how to mesh this structure

Posted 25 févr. 2016, 12:05 UTC−5 Version 5.0 1 Reply

Amin
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

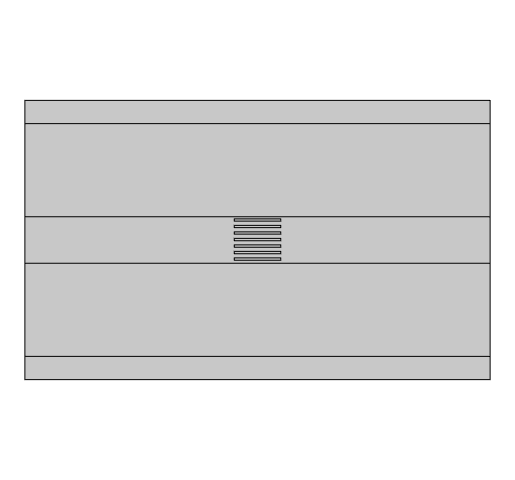

hi there , i have a question that is which kind of mesh is suitable for such a geometry that is attached.
mapped or free triangular ?
and what is difference between these two ?

any help would be appreciated .

Attachments:

1 Reply Last Post 26 févr. 2016, 08:54 UTC−5
Hamid Shahrouzi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 26 févr. 2016, 08:54 UTC−5
Hi
I have used triangular mesh several times and it works very well. I would say the resolution is more important than the type. Just make sue that you have added the 'size' node and have changed the narrow area resolution to a reasonable value.
BR / HS
Hi I have used triangular mesh several times and it works very well. I would say the resolution is more important than the type. Just make sue that you have added the 'size' node and have changed the narrow area resolution to a reasonable value. BR / HS
