Target Strength of Submarine with Outer Hull Using FEM-BEM
Application ID: 133521

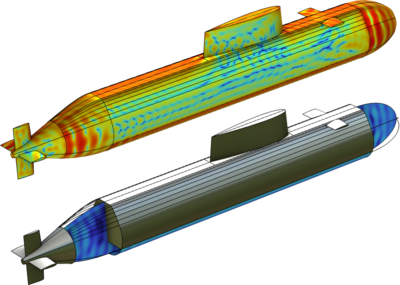

This tutorial shows an approach to model the acoustic scattering off a submarine including the outer hull. The flooded volumes between the outer hull and the pressure hull are modeled with Pressure Acoustics, Frequency Domain (FEM) and the outside water domains with Pressure Acoustics, Boundary Elements (BEM). The properties of the outer hull are modeled using an approximate transfer impedance model of a thin plate. The impedance is added when coupling the FEM and the BEM domains using the Acoustic BEM-FEM Boundary multiphysics coupling.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
